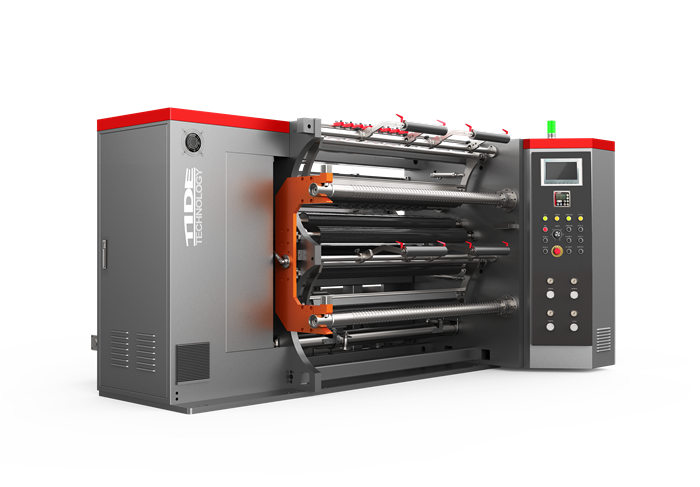

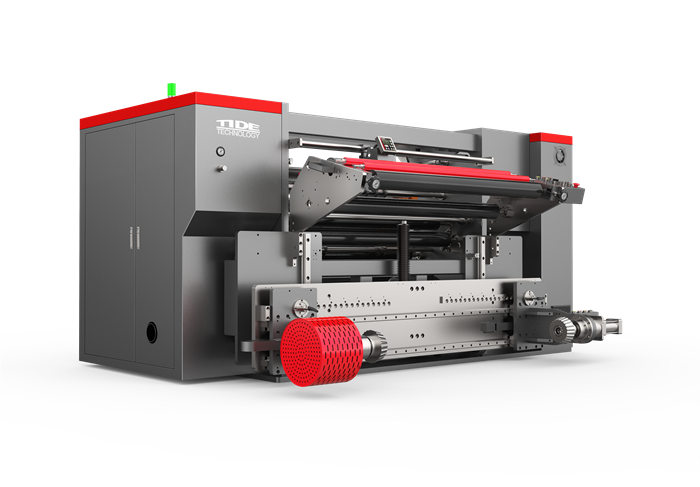

ES400 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Slitting for film, paper or laminated material
· Unwinding width adjusting manually
· Separated tension control system
· Center rewinding mode

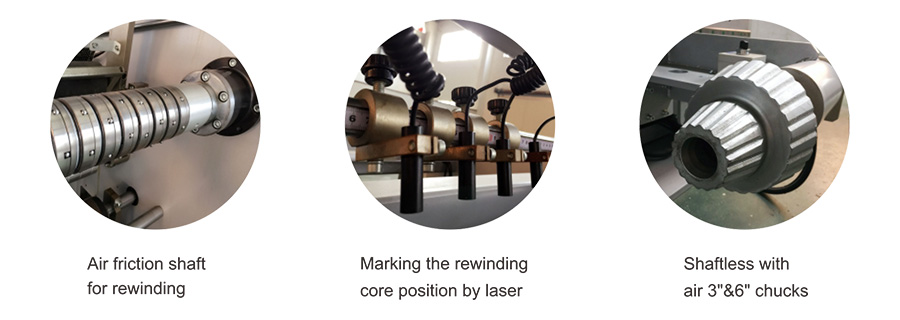

· Marking the rewinding core position by laser
· Unwinding width adjusting manually
· Separated tension control system
· Center rewinding mode
· Marking the rewinding core position by laser
· Razor knife slitting
· Air friction shafts for rewinding
· Unloading the finished rolls manually
· Inverter drive system
· Air friction shafts for rewinding
· Unloading the finished rolls manually
· Inverter drive system
TECHNICAL DATA
· Width of working face: 1300mm
· Diameter of unwinding: φ800mm(max)
· Thickness of material: 12-120μm
· Diameter of rewinding: φ600mm(max)
· Width of rewinding: 50mm(min)
· Working speed: 400m/min(max)
OPTION
* Stop by pictures accounting
* Unwinding roll loading sami-automatically
* Unwinding roll loading sami-automatically
