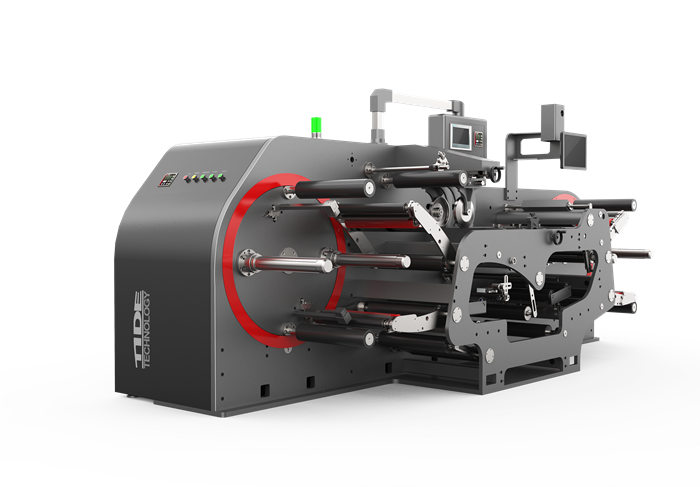

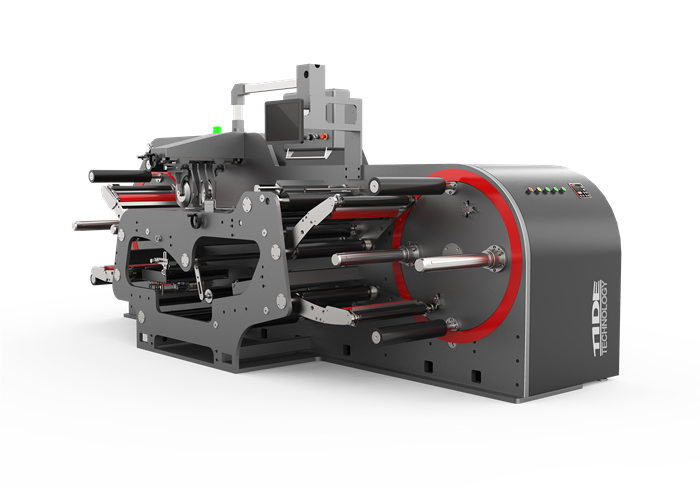

HR400 Non Stop Shrink Sleeve Converting Machine
CHARACTERISTICS
· Sealing for PVC/PETG and other shrink film
· Servo driving system
· Turret winders
· Non stop rolls change system
· Maintenance information on touch screen
· Remote diagnosis and services
· Servo driving system
· Turret winders
· Non stop rolls change system
· Maintenance information on touch screen
· Remote diagnosis and services
· Separated tension control system
· Spooling mode
· Automatic injection glue system
· Siemens PLC&touch screen
· Self diagnosis
· Spooling mode
· Automatic injection glue system
· Siemens PLC&touch screen
· Self diagnosis
TECHNICAL DATA
· Thickness: 12-120um
· Tension: 300N(max)
· Unwinding width: 600mm(max)
· Unwinding diameter: 600mm(max)
· Tension: 300N(max)
· Unwinding width: 600mm(max)
· Unwinding diameter: 600mm(max)
· Speed: 400m/min(max)
· Rewinding width: 600mm(max)
· Lay flat width: 50mm(min)
· Rewinding width: 600mm(max)
· Lay flat width: 50mm(min)
OPTION
* Transverse perforation
* Stroboscope
